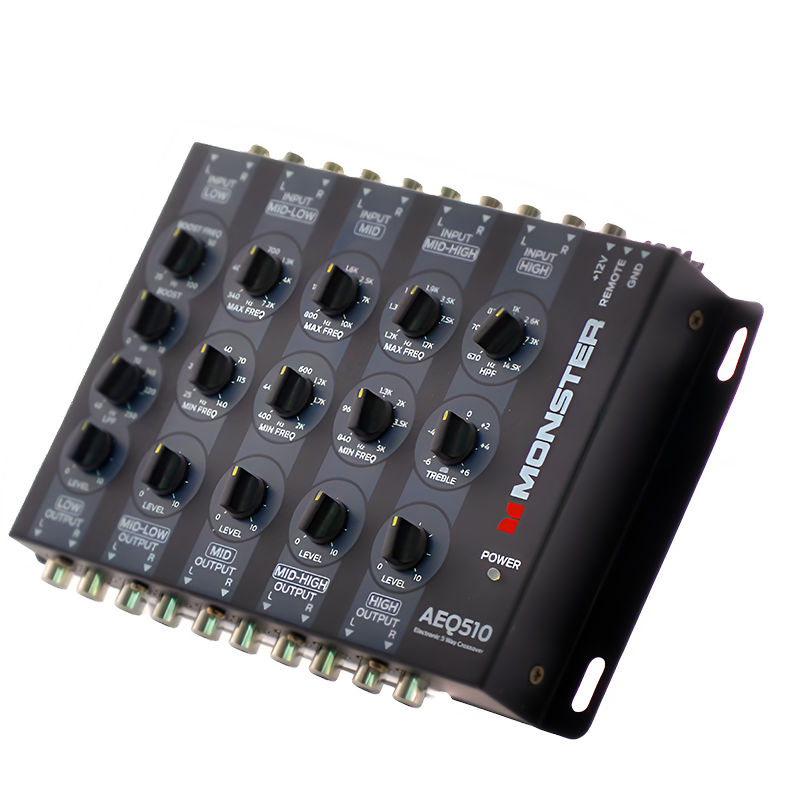

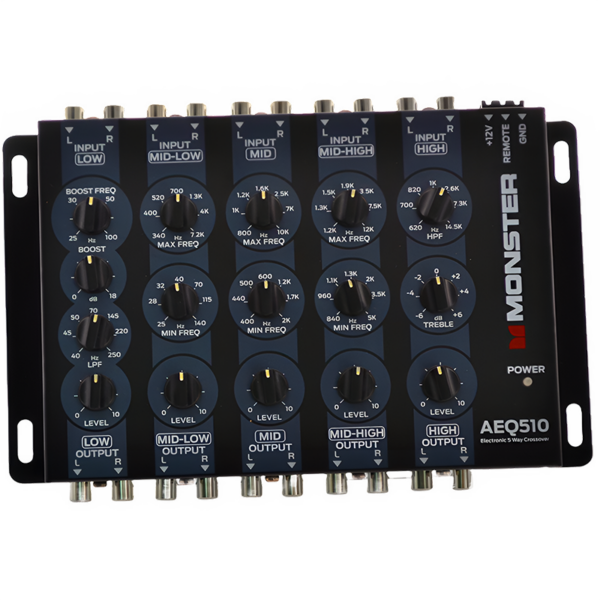

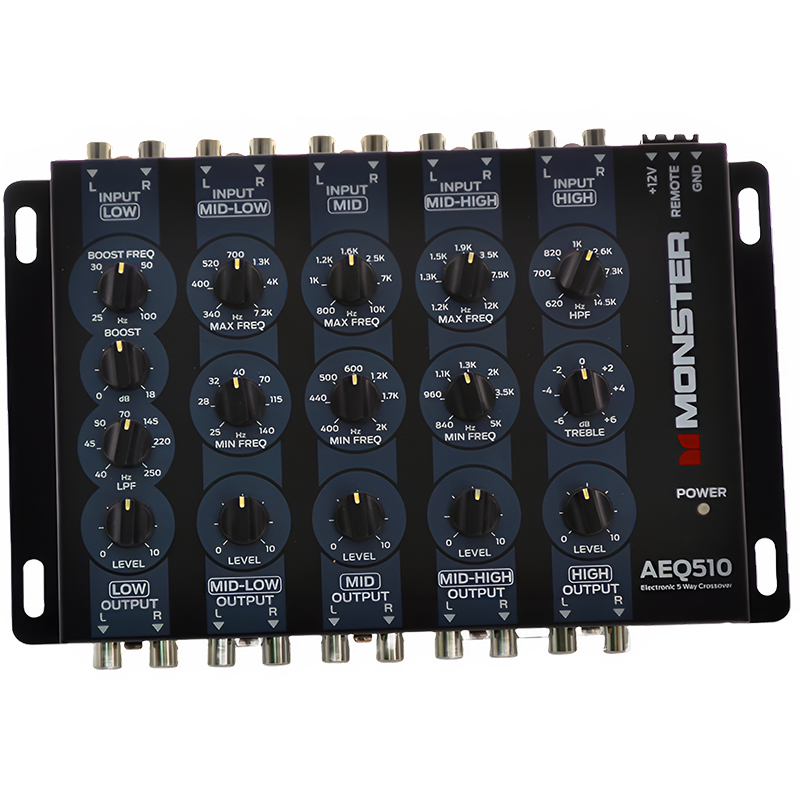

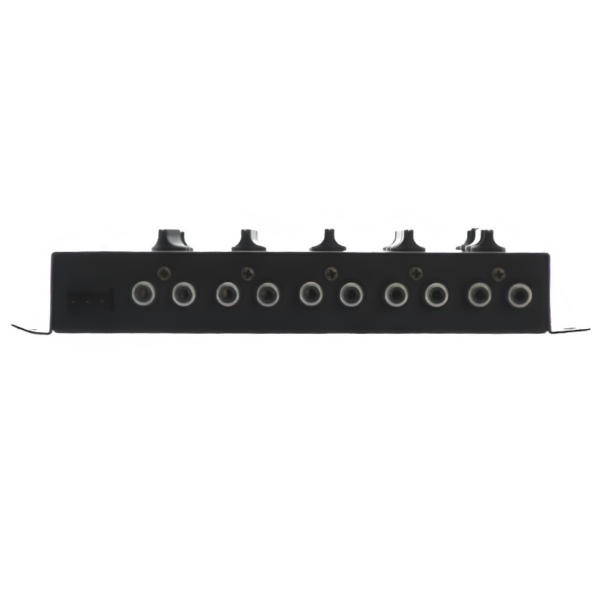

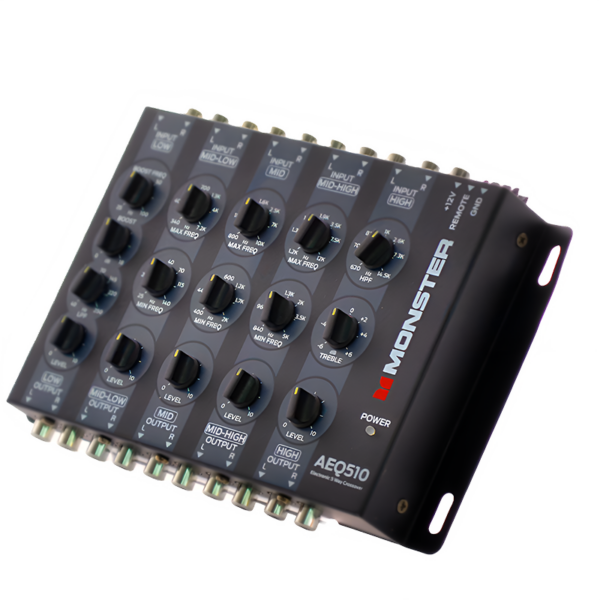

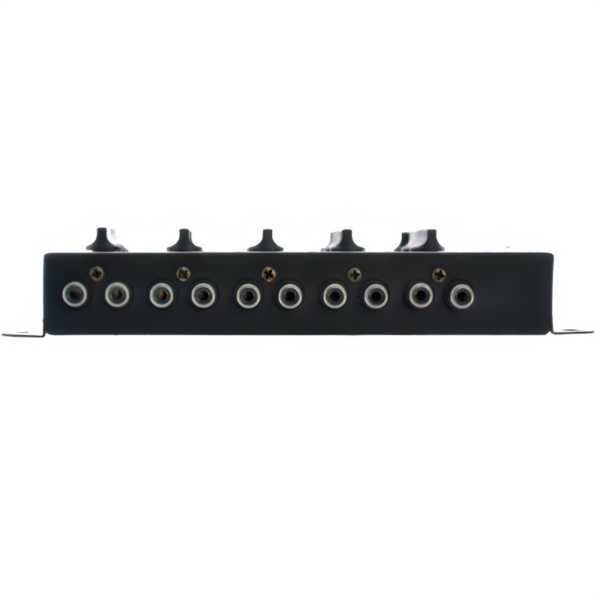

Crossover electrónico 5vías+ Line Driver – AEQ510

Especificaciones

Number of Ways: 5
Low Way (Mono):
- Cutoff frequency (LPF): Variable of 40Hz to 250Hz(-12dB/oct)
- Bass Boost: Frequency Central Variable of 25Hz to 100Hz(0db – 18dB)
MID LOW WAY (Stereo)
- Minimum Frequency (Count HPF): Variable of 25Hz to 140Hz(-12dB/oct)
- Maximum Frequency (Count LPF): Variable of 300Hz to 7.5KHz(-12dB/oct)
MID WAYS (Stereo)
- Minimum Frequency (Count HPF): Variable of 400Hz to 2hKHz(-12dB/oct)
- Maximum Frequency (Count LPF): Variable of 800Hz to 10KHz(-12dB/oct)
MID HIGH WAY (Stereo)
- Cutoff frequency: Variable of 550Hz to 13.7KHz (-12dB/oct)
- Harmonic distortion (THD): <0.01 to 1KHz
- Input Impedance: 20k Ohms
- Output Impedance: 470 Ohms
- Maximum Input Level: 8V RMS
- Maximum Output Level: 8V RMS
- Crosstalk (Channel separation): >80dB
- Power supply: 10 to 15.5 VDC
- Nominal consumption: 240mA
- Protection: Against Polarity Inversion
- Power supply: With DC-DC converter Switch
- Dimensions (WxHxD): 207 x 40 x 148mm (8.15″ x 1.57″ x 5.82″)
- Weight: 0.66 Kg (1.46 lb)
